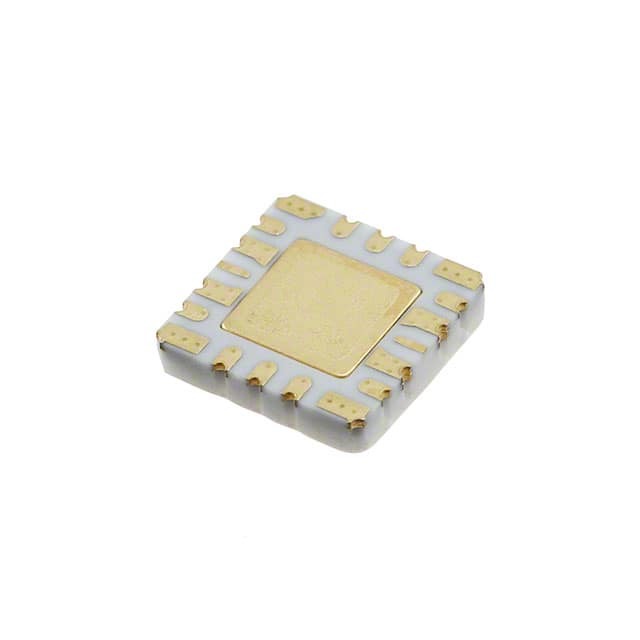

HMC7229LS6

SKU: 157857

Manufacturer: Analog Devices

RF Amp Single Power Amp 40GHz 7V 16-Pin CLLCC EP T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001b.2.d.
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	40000
Typical Power Gain (dB)	24@40000MHz
Typical Output Power (dBm)	31.5@40000MHz
Typical Output Intercept Point (dBm)	40@40000MHz
Maximum Input Return Loss (dB)	16(Typ)@40000MHz
Maximum Output Return Loss (dB)	14(Typ)@40000MHz
Operating Supply Voltage-Max (V)	7
Typical Single Supply Voltage (V)	6
Maximum Single Supply Voltage (V)	7
Maximum Supply Current (mA)	1200(Typ)@6V
Power Supply Type	Single
Maximum Power Dissipation (mW)	9000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CLLCC EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	6
Package Width	6
