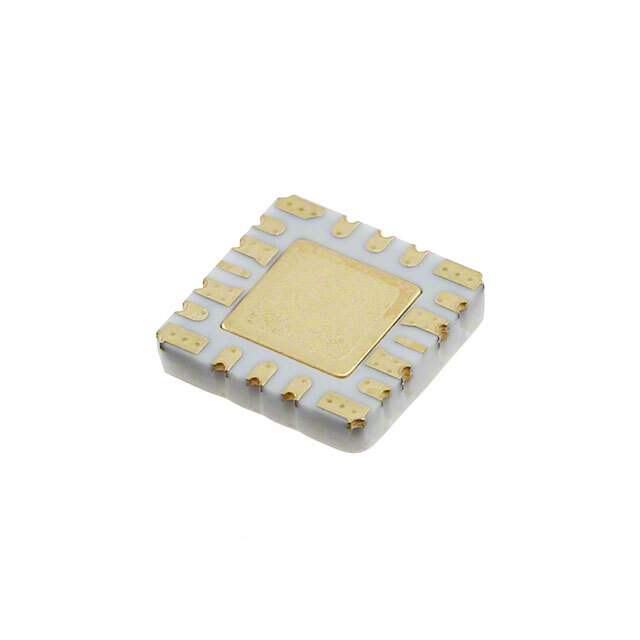

HMC6981LS6

SKU: 132231

Manufacturer: Analog Devices

RF Amp Single Power Amp 20GHz 6.5V 16-Pin CLLCC EP T/R

1280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	20000
Typical Power Gain (dB)	26@20000MHz
Typical Output Power (dBm)	33.5@20000MHz
Typical Output Intercept Point (dBm)	43.5@20000MHz
Maximum Input Return Loss (dB)	13(Typ)@20000MHz
Maximum Output Return Loss (dB)	15(Typ)@20000MHz
Operating Supply Voltage-Max (V)	6.5
Typical Single Supply Voltage (V)	5.5
Maximum Single Supply Voltage (V)	6.5
Maximum Supply Current (mA)	1100(Typ)@6V
Power Supply Type	Single
Maximum Power Dissipation (mW)	11700
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CLLCC EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	6
Package Width	6
