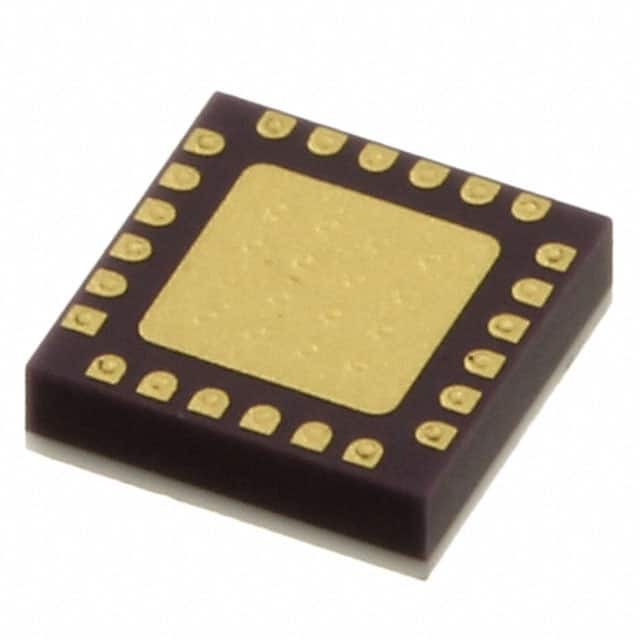

HMC641ALC4

SKU: 129451

Manufacturer: Analog Devices

RF Switch SP4T 0MHz to 20GHz 30dB 24-Pin CLLCC EP Cut Tape

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SP4T
Switch Configuration	Single SP4T
Number of Switches	1
Switching Speed (ns)	30
Frequency Band (MHz)	0 to 20000
Maximum Frequency (MHz)	20000
Minimum Isolation Voltage (dB)	30
Maximum Insertion Loss (dB)	3.5
Typical Input 1dB Compressed Power (dBm)	25
Technology	TTL
Operating Supply Voltage-Min (V)	-5.5
Typical Operating Supply Voltage (V)	-5
Operating Supply Voltage-Max (V)	-4.5
High Control Voltage (V)	-5 to -3.8
Typical Supply Current (mA)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	24
Original Package	CLLCC EP
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	1.02(Max)
Package Length	4
Package Width	4
PCB changed	24
