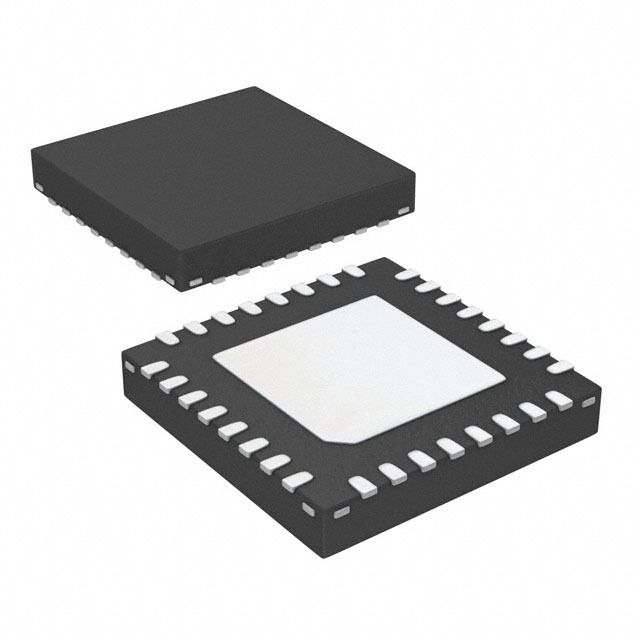

HMC584LP5E

SKU: 103781

Manufacturer: Analog Devices

Oscillator VCO 6250MHz to 6950MHz/ 12500MHz to 13900MHz 5V 32-Pin QFN EP SMD T/R

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.60.00.80
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	6250
Upper Frequency (MHz)	13900
Output Frequency (MHz)	6250 to 6950
Frequency Range (MHz)	6250 to 6950
Typical Phase Noise (dBc/Hz)	-110@100KHz
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Tuning Voltage (V)	2 to 12
Maximum Supply Current (mA)	380
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	32
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
