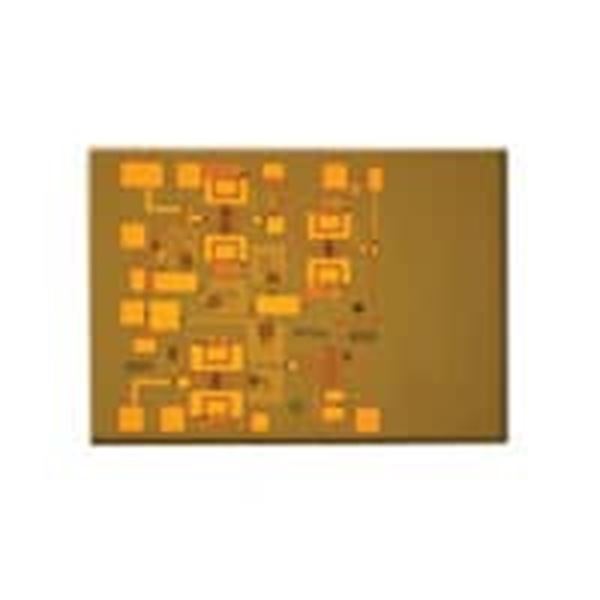

HMC578

SKU: 118014

Manufacturer: Analog Devices

Active RF Multipliers x2 24GHz to 33GHz-OUT 6-Pin Die Tray

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Frequency Multiplier Type	Active
Multiplying Factor	x2
Input Frequency Range (GHz)	12 to 16.5
Output Frequency Range (GHz)	24 to 33
Typical Input Return Loss (dB)	10
Typical Output Return Loss (dB)	15
Typical Phase Noise (dBc/Hz)	-132
Maximum Input Power	6dBm
Typical Output Power (dBm)	17
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	81
Maximum Power Dissipation (mW)	703
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	6
Package Height	0.1
Package Length	1.23
Package Width	1.18
