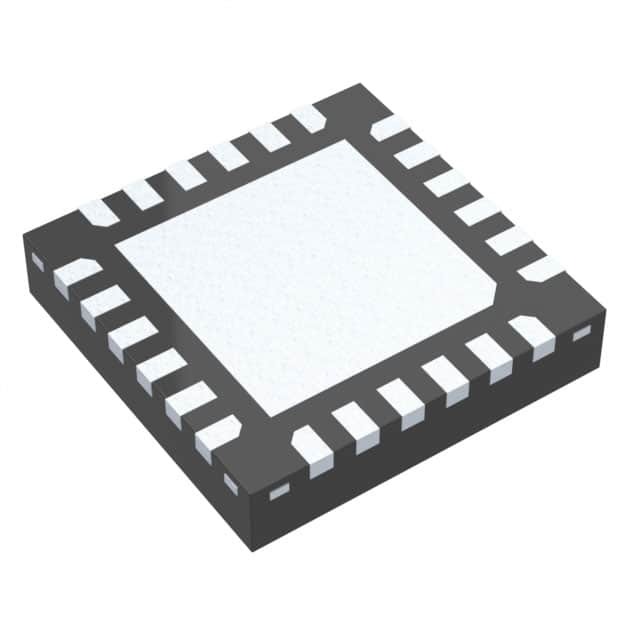

HMC575LP4E

SKU: 26005

Manufacturer: Analog Devices

Active RF Multipliers x2 6GHz to 9GHz-OUT 24-Pin QFN EP Cut Tape

3530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Frequency Multiplier Type	Active
Multiplying Factor	x2
Input Frequency Range (GHz)	3 to 4.5
Output Frequency Range (GHz)	6 to 9
Typical Input Return Loss (dB)	15
Typical Output Return Loss (dB)	12
Typical Phase Noise (dBc/Hz)	-140
Maximum Input Power	6dBm
Typical Output Power (dBm)	17
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	91(Typ)
Maximum Power Dissipation (mW)	512
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	24
Original Package	QFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
