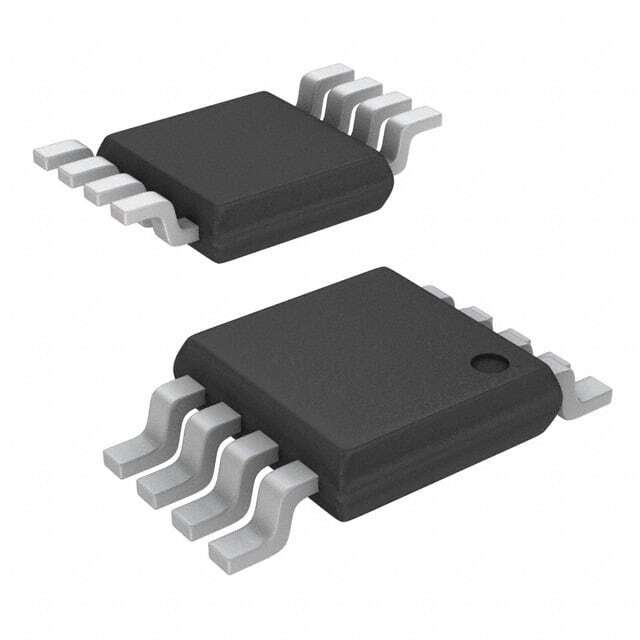

HMC574MS8ETR

SKU: 19017

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 3GHz 16dB Automotive 8-Pin MSOP T/R

14230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	80(Typ)
Frequency Band (MHz)	0 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	16
Maximum Insertion Loss (dB)	0.8
Typical Input 1dB Compressed Power (dBm)	39
Technology	GaAs MMIC
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	8
Typical Supply Current (mA)	0.01
Maximum Power Dissipation (mW)	650
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
