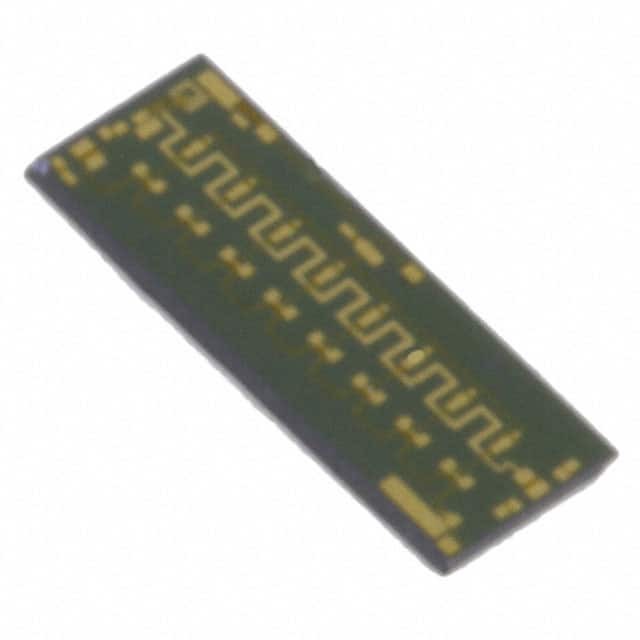

HMC562

SKU: 16275

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 35GHz 10V 4-Pin Die Tray

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001b.2.d.
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	35000
Typical Gain Flatness (dB)	1.3@35000MHz
Typical Power Gain (dB)	10@35000MHz
Typical Output Power (dBm)	14@35000MHz
Typical Output Intercept Point (dBm)	22@35000MHz
Maximum Input Return Loss (dB)	10(Typ)@35000MHz
Maximum Output Return Loss (dB)	12(Typ)@35000MHz
Typical Noise Figure (dB)	5@35000MHz
Operating Supply Voltage-Max (V)	10
Maximum Single Supply Voltage (V)	10
Maximum Supply Current (mA)	100@8V
Power Supply Type	Single
Maximum Power Dissipation (mW)	2300
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	4
Package Height	0.1
Package Length	3.12
Package Width	1.42
