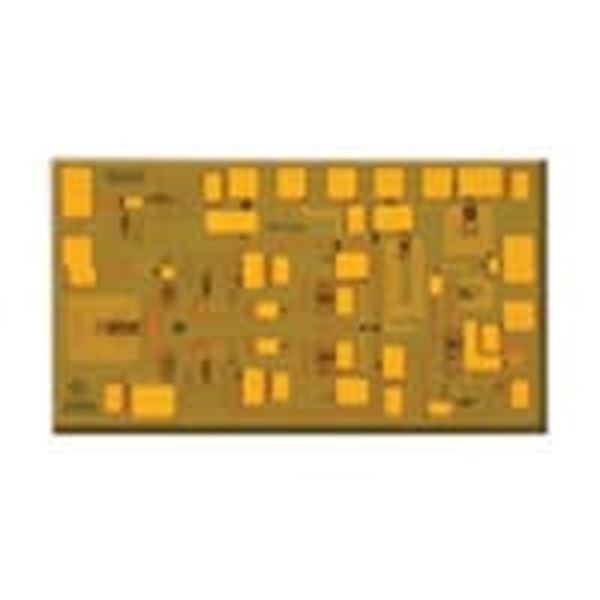

HMC561

SKU: 86965

Manufacturer: Analog Devices

Active RF Multipliers x2 8GHz to 21GHz-OUT 8-Pin Tray

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Frequency Multiplier Type	Active
Multiplying Factor	x2
Input Frequency Range (GHz)	4 to 10.5
Output Frequency Range (GHz)	8 to 21
Typical Input Return Loss (dB)	15
Typical Output Return Loss (dB)	12
Typical Phase Noise (dBc/Hz)	-139
Maximum Input Power	6dBm
Typical Output Power (dBm)	17
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	126
Maximum Power Dissipation (mW)	940
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	8
Terminal Form	Surface Mount
Package Length	1.6
Package Width	0.94
