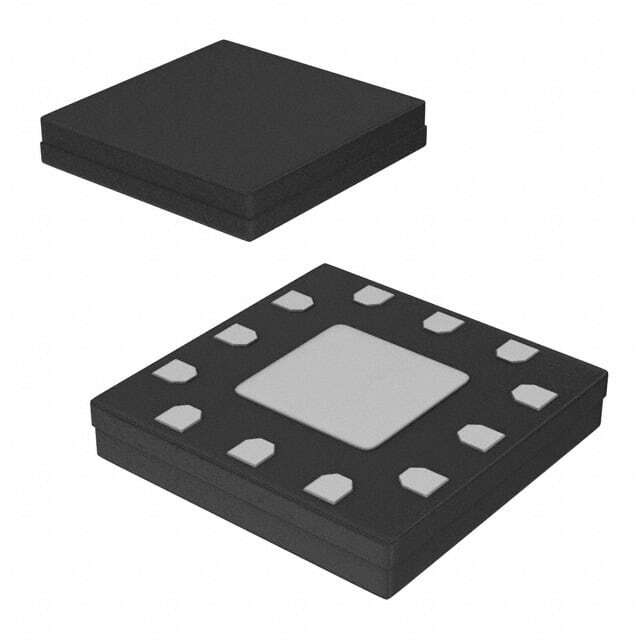

HMC554ALC3BTR

SKU: 51801

Manufacturer: Analog Devices

Up/Down Conv Mixer 20GHz 12-Pin CLLCC EP T/R

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	11000
Maximum Input Frequency (MHz)	20000
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	6000
Maximum Conversion Loss (dB)	11
Typical Noise Figure (dB)	8
Typical LO/RF Isolation (dB)	46
Typical Third Order Input Intercept Point (dBm)	18
Maximum Power Dissipation (mW)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CLLCC EP
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.8
Package Length	2.9
Package Width	2.9
