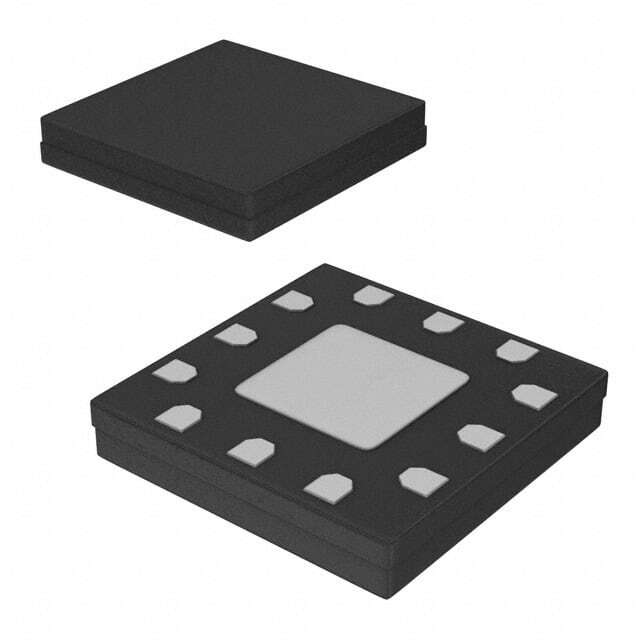

HMC553ALC3BTR

SKU: 61556

Manufacturer: Analog Devices

Up/Down Conv Mixer 14GHz 12-Pin CLLCC EP T/R

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	6000
Maximum Input Frequency (MHz)	14000
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	5000
Maximum Conversion Loss (dB)	10
Typical Noise Figure (dB)	10
Typical LO/RF Isolation (dB)	37
Typical Third Order Input Intercept Point (dBm)	19
Maximum Power Dissipation (mW)	414
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	LCC
Original Package	CLLCC EP
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.8
Package Length	2.9
Package Width	2.9
