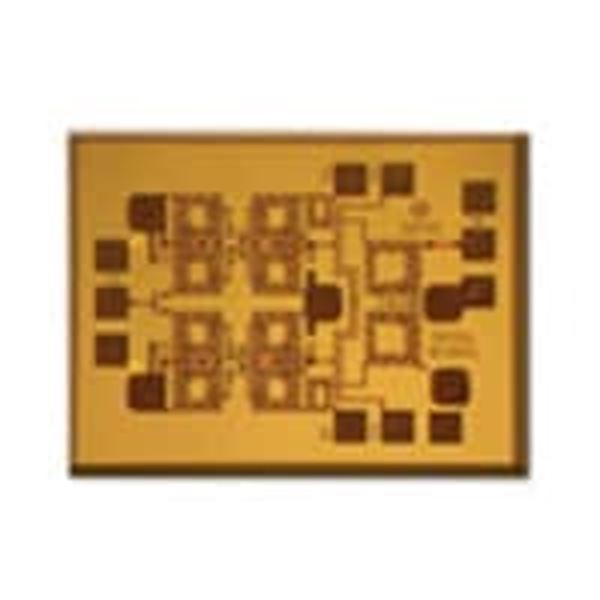

HMC521

SKU: 16274

Manufacturer: Analog Devices

Up/Down Conv Mixer 13.5GHz 6-Pin Die Tray

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	8500
Maximum Input Frequency (MHz)	13500
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	3500
Maximum Conversion Loss (dB)	10
Typical LO/RF Isolation (dB)	50
Typical Third Order Input Intercept Point (dBm)	24
Maximum Power Dissipation (mW)	460
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Standard Package Method	Die
Original Package	Die
Pin Count	6
Package Height	0.1
Package Length	1.49
Package Width	1.14
