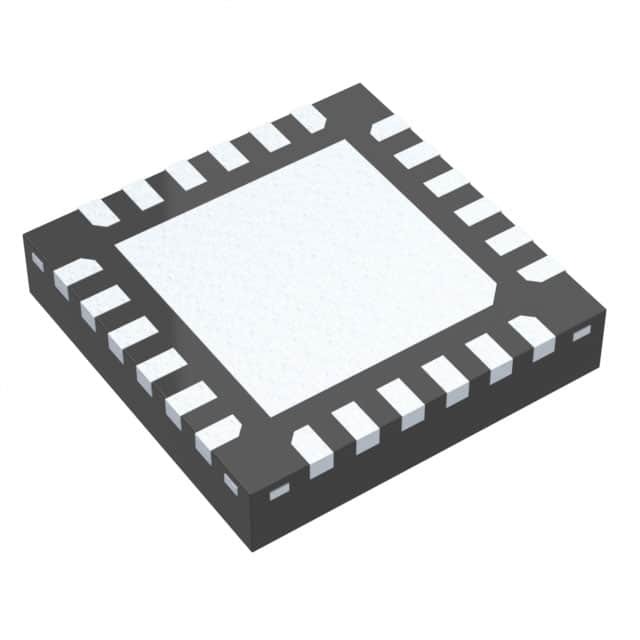

HMC505LP4E

SKU: 122361

Manufacturer: Analog Devices

Oscillator VCO 6800MHz to 7400MHz 3V 24-Pin QFN EP SMD T/R

3760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	6800
Upper Frequency (MHz)	7400
Output Frequency (MHz)	6800 to 7400
Frequency Range (MHz)	6800 to 7400
Typical Phase Noise (dBc/Hz)	-106@100KHz
Operating Supply Voltage-Max (V)	3.5
Typical Operating Supply Voltage (V)	3
Tuning Voltage (V)	1 to 11
Maximum Supply Current (mA)	80(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
