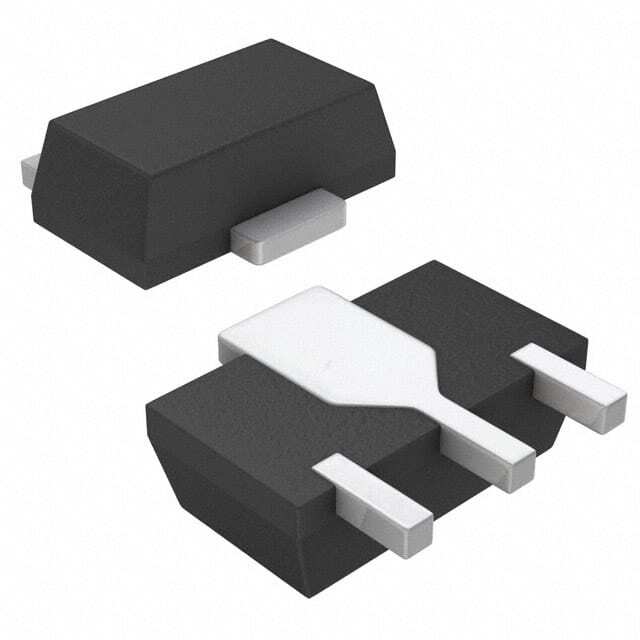

HMC482ST89ETR

SKU: 125085

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 5GHz 12V 4-Pin(3+Tab) SOT-89 T/R

560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	5000
Typical Power Gain (dB)	10@5000MHz
Typical Output Power (dBm)	13.5@5000MHz
Typical Output Intercept Point (dBm)	28@5000MHz
Maximum Reverse Isolation (dB)	16@5000MHz
Maximum Input Return Loss (dB)	18(Typ)@5000MHz
Maximum Output Return Loss (dB)	8(Typ)@5000MHz
Typical Noise Figure (dB)	5.5@5000MHz
Operating Supply Voltage-Max (V)	12
Minimum Single Supply Voltage (V)	6
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Maximum Supply Current (mA)	110(Typ)@8V
Power Supply Type	Single
Maximum Power Dissipation (mW)	940
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.59(Max)
PCB changed	3
