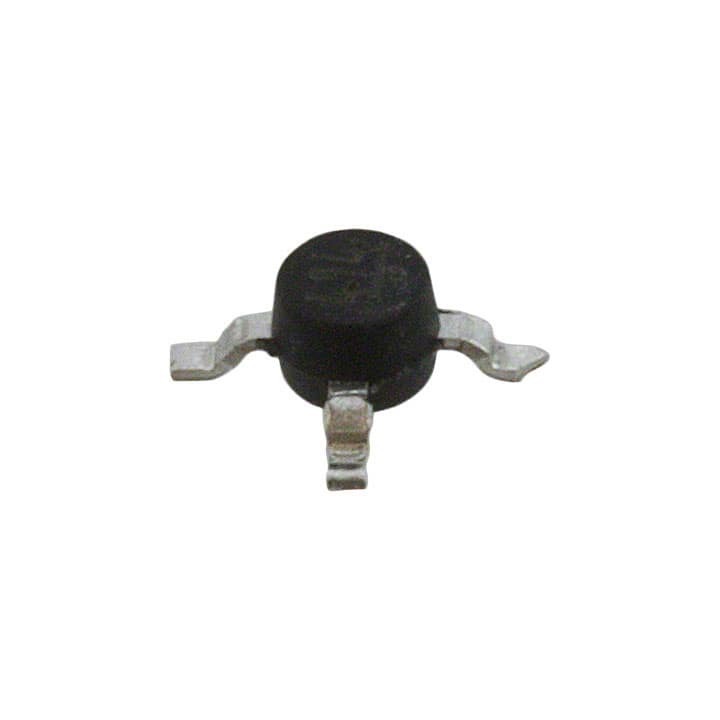

HMC479MP86

SKU: 40244

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 5GHz 12V 4-Pin Micro-P T/R

3800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	5000
Typical Power Gain (dB)	9.5@5000MHz
Typical Output Power (dBm)	12@5000MHz
Typical Output Intercept Point (dBm)	25@5000MHz
Maximum Reverse Isolation (dB)	18(Typ)@5000MHz
Maximum Input Return Loss (dB)	15(Typ)@5000MHz
Maximum Output Return Loss (dB)	15(Typ)@5000MHz
Typical Noise Figure (dB)	4.8@5000MHz
Operating Supply Voltage-Max (V)	12
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Maximum Supply Current (mA)	100@8V
Power Supply Type	Single
Maximum Power Dissipation (mW)	702
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	Micro-P
Pin Count	4
Diameter	2.29(Max)
Terminal Form	Surface Mount
Package Height	1.65(Max)
