    PrevHMC451LP3E
    NextHMC454ST89

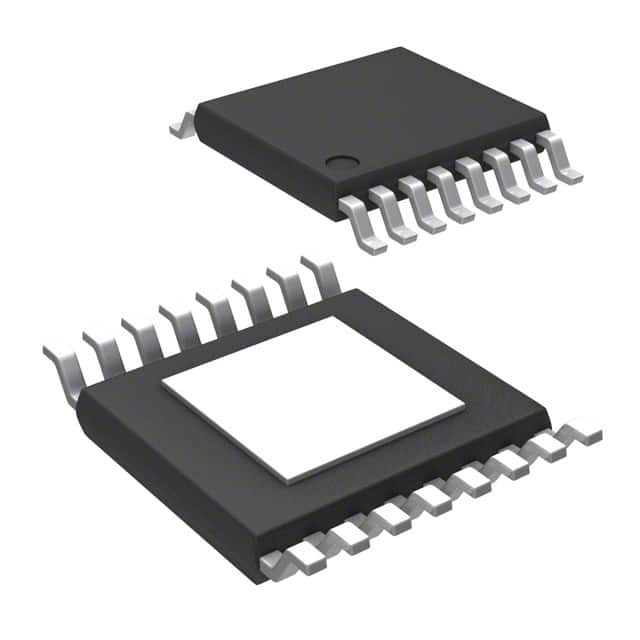

    HMC453QS16G

    SKU: 51798
    Manufacturer: Analog Devices
    RF Amp Single Power Amp 2.2GHz 6V 16-Pin QSOP T/R
    Download sample
    Request Free Samples
    2660 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Not Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.33.00.01
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Manufacturer Type Power Amplifier
    Number of Channels per Chip 1
    Maximum Operating Frequency (MHz) 2200
    Typical Power Gain (dB) 8@2170MHz
    Typical Output Power (dBm) 33@2170MHz
    Typical Output Intercept Point (dBm) 51@2170MHz
    Maximum Input Return Loss (dB) 15(Typ)@2170MHz
    Maximum Output Return Loss (dB) 18(Typ)@2170MHz
    Typical Noise Figure (dB) 6.5@2170MHz
    Operating Supply Voltage-Max (V) 6
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 6
    Maximum Supply Current (mA) 725(Typ)@5V
    Power Supply Type Single
    Maximum Power Dissipation (mW) 3800
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tape and Reel
    Original Package QSOP
    Pin Count 16
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.5(Max)
    Package Length 5(Max)
    Package Width 4(Max)
    PCB changed 16
