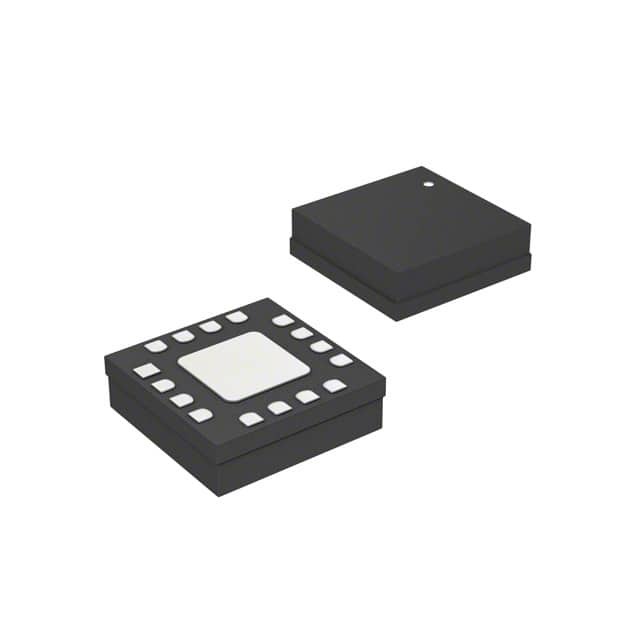

    HMC451LC3TR-R5

    SKU: 89637
    Manufacturer: Analog Devices
    RF Amp Single LNA 20GHz 5.5V 16-Pin CLLCC EP T/R
    Download sample
    Request Free Samples
    2090 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.33.00.01
    Automotive No
    PPAP No
    Manufacturer Type Low Noise Amplifier
    Number of Channels per Chip 1
    Maximum Operating Frequency (MHz) 20000
    Typical Power Gain (dB) 17@20000MHz
    Typical Output Power (dBm) 19.5@20000MHz
    Typical Output Intercept Point (dBm) 29@20000MHz
    Maximum Input Return Loss (dB) 12(Typ)@20000MHz
    Maximum Output Return Loss (dB) 8(Typ)@20000MHz
    Typical Noise Figure (dB) 7@20000MHz
    Operating Supply Voltage-Max (V) 5.5
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 5.5
    Maximum Supply Current (mA) 114(Typ)@5V
    Power Supply Type Single
    Maximum Power Dissipation (mW) 1100
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tape and Reel
    Original Package CLLCC EP
    Pin Count 16
    Terminal Form Surface Mount
    Package Height 0.8
    Package Length 2.9
    Package Width 2.9
