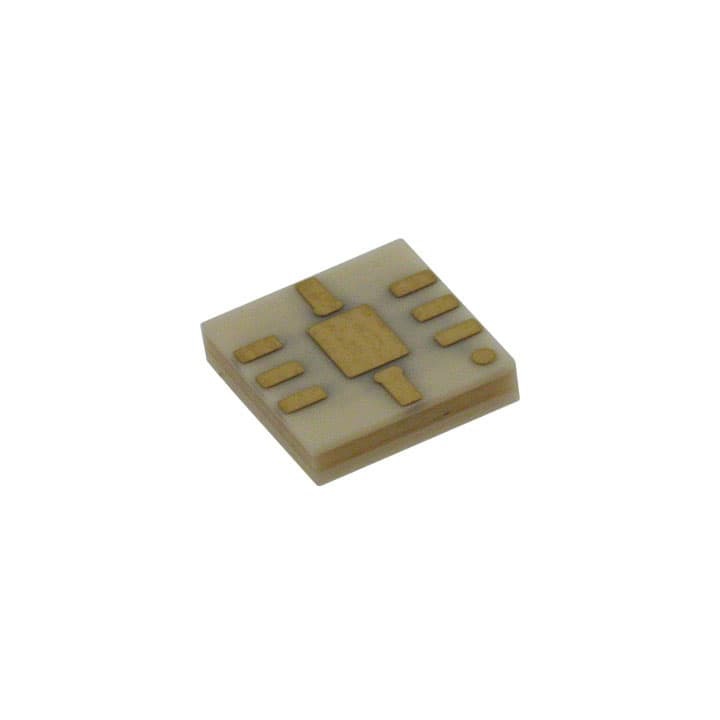

HMC442LM1

SKU: 44636

Manufacturer: Analog Devices

RF Amp Single Power Amp 24GHz 5.5V 8-Pin LM1 T/R

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	24000
Typical Power Gain (dB)	14@24000MHz
Typical Output Power (dBm)	21.5@24000MHz
Typical Power Added Efficiency (%)	27
Typical Output Intercept Point (dBm)	27@24000MHz
Maximum Input Return Loss (dB)	10(Typ)@24000MHz
Maximum Output Return Loss (dB)	8(Typ)@24000MHz
Typical Noise Figure (dB)	6.5@24000MHz
Operating Supply Voltage-Max (V)	5.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	84(Typ)@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	491
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LM1
Pin Count	8
Standard Package Method	LM1
Terminal Form	Surface Mount
Package Height	1.1
Package Length	5.1
Package Width	5.1
