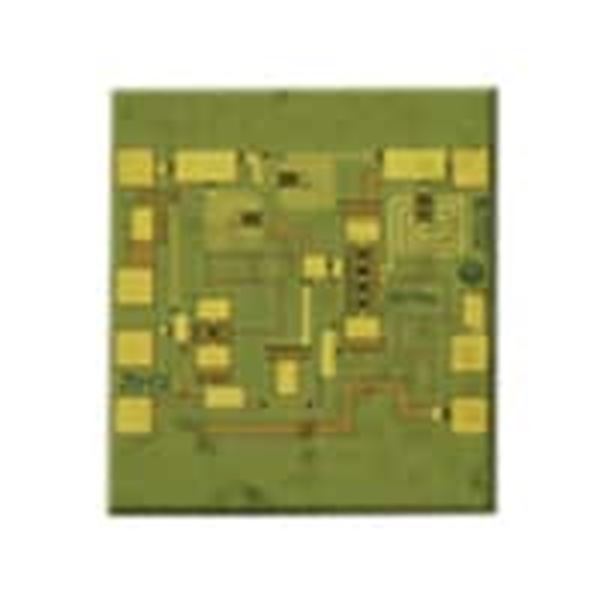

HMC442

SKU: 115255

Manufacturer: Analog Devices

RF Amp Single Power Amp 25.5GHz 5.5V 4-Pin Die Tray

2880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	25500
Typical Power Gain (dB)	16@25500MHz
Typical Output Power (dBm)	22@25500MHz
Typical Output Intercept Point (dBm)	27@25500MHz
Maximum Input Return Loss (dB)	10(Typ)@25500MHz
Maximum Output Return Loss (dB)	10(Typ)@25500MHz
Typical Noise Figure (dB)	6@25500MHz
Operating Supply Voltage-Max (V)	5.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	110@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	640
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	4
Package Height	0.1
Package Length	1.13
Package Width	1.03
