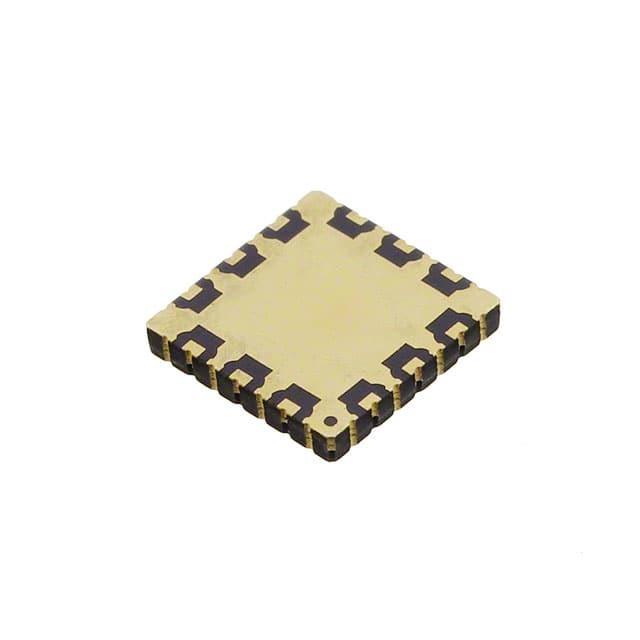

HMC441LH5

SKU: 51797

Manufacturer: Analog Devices

RF Amp Single Power Amp 15.5GHz 6V 12-Pin CSMD T/R

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	15500
Typical Power Gain (dB)	13.5@15500MHz
Typical Output Power (dBm)	19@15500MHz
Typical Power Added Efficiency (%)	25
Typical Output Intercept Point (dBm)	32@15500MHz
Maximum Input Return Loss (dB)	8(Typ)@15500MHz
Maximum Output Return Loss (dB)	12(Typ)@15500MHz
Typical Noise Figure (dB)	5@15500MHz
Operating Supply Voltage-Max (V)	6
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	6
Maximum Supply Current (mA)	115@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	760
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CSMD
Pin Count	12
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.27(Max)
Package Length	5.21(Max)
Package Width	5.21(Max)
