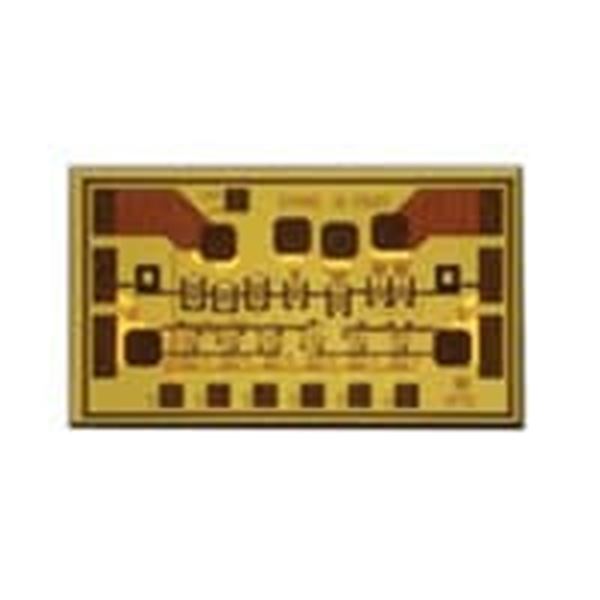

HMC424A

SKU: 19012

Manufacturer: Analog Devices

6Bit 0.5dBStep 31.5dB 13GHz 9-Pin Die Tray

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Bits	6
Attenuator Step Size (dB)	0.5
Maximum Attenuation (dB)	31.5(Typ)
Minimum Frequency (MHz)	0
Maximum Frequency (MHz)	13000
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (A)	0.005
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	9
Package Height	0.1
Package Length	1.39
Package Width	0.77
