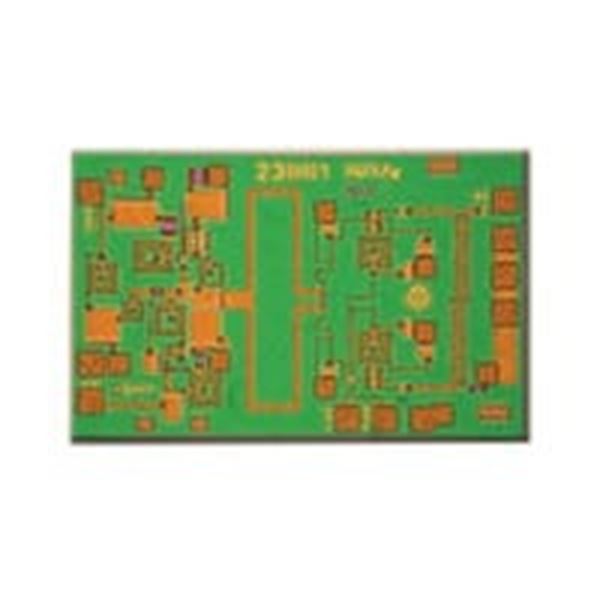

HMC404

SKU: 37523

Manufacturer: Analog Devices

Up/Down Conv Mixer 33GHz 5-Pin Die Tray

3450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	26000
Maximum Input Frequency (MHz)	33000
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	3000
Maximum Conversion Loss (dB)	15
Typical Noise Figure (dB)	11
Typical LO/RF Isolation (dB)	35
Typical Third Order Input Intercept Point (dBm)	16
Maximum Power Dissipation (mW)	238
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Standard Package Method	Die
Original Package	Die
Pin Count	5
Terminal Form	Surface Mount
Package Height	0.1
Package Length	1.9
Package Width	1.25
