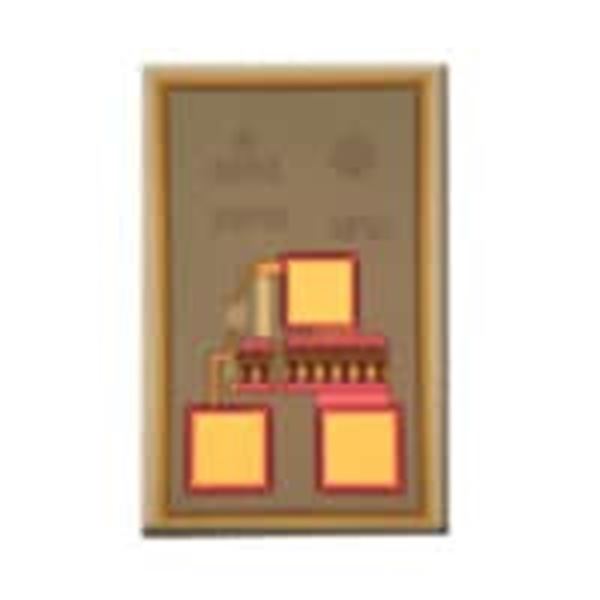

HMC395

SKU: 68561

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 4GHz 7V 2-Pin Die Tray

4220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	4000
Typical Power Gain (dB)	15@4000MHz
Typical Output Power (dBm)	10@4000MHz
Typical Output Intercept Point (dBm)	22@4000MHz
Maximum Reverse Isolation (dB)	19(Typ)@4000MHz
Maximum Input Return Loss (dB)	15(Typ)@4000MHz
Maximum Output Return Loss (dB)	10(Typ)@4000MHz
Typical Noise Figure (dB)	4.5@4000MHz
Operating Supply Voltage-Max (V)	7
Maximum Single Supply Voltage (V)	7
Maximum Supply Current (mA)	54(Typ)@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	475
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	2
Package Height	0.1
Package Length	0.58
Package Width	0.38
