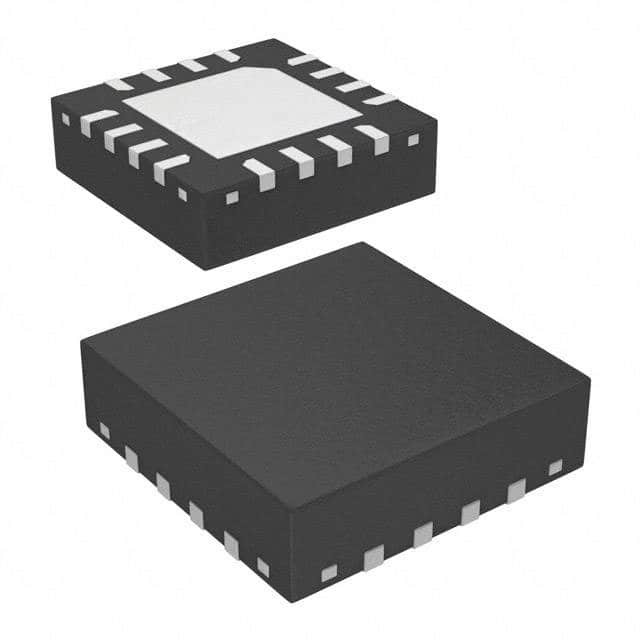

HMC349LP4CETR

SKU: 54534

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 4GHz 55dB 16-Pin QFN EP

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	2
Frequency Band (MHz)	0 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	55
Maximum Insertion Loss (dB)	1.7
Typical Input 1dB Compressed Power (dBm)	31
Technology	GaAs
Operating Supply Voltage-Max (V)	7
Maximum Power Dissipation (mW)	750
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	16
