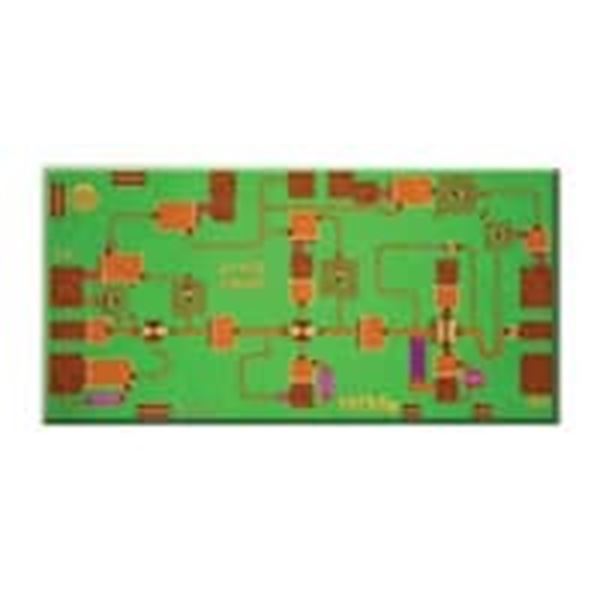

HMC342-SX

SKU: 79841

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 25GHz 5.5V 3-Pin Die Tray

1030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	25000
Typical Power Gain (dB)	21@25000MHz
Typical Output Power (dBm)	5@25000MHz
Typical Output Intercept Point (dBm)	13@25000MHz
Maximum Reverse Isolation (dB)	45(Typ)@25000MHz
Maximum Input Return Loss (dB)	13(Typ)@25000MHz
Maximum Output Return Loss (dB)	14(Typ)@25000MHz
Typical Noise Figure (dB)	3.5@25000MHz
Operating Supply Voltage-Max (V)	5.5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	55@3V
Power Supply Type	Single
Maximum Power Dissipation (mW)	326
Operating Temperature-Min	-55
Operating Temperature-Max	85
Original Package	Die
Pin Count	3
Package Height	0.1
Package Length	2.02
Package Width	1.06
