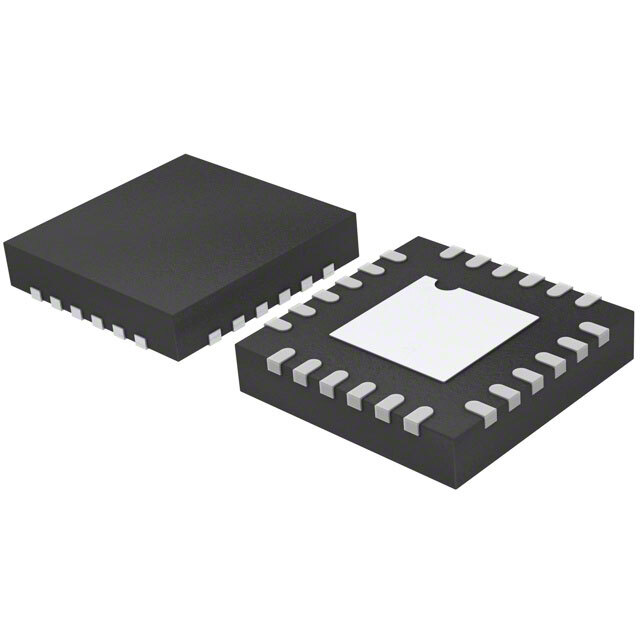

HMC321ALP4E

SKU: 23328

Manufacturer: Analog Devices

RF Switch SP8T 0MHz to 8GHz 20dB 24-Pin LFCSP EP Cut Tape

3110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SP8T
Switch Configuration	Single SP8T
Number of Switches	1
Switching Speed (ns)	25(Typ)
Frequency Band (MHz)	0 to 8000
Maximum Frequency (MHz)	8000
Minimum Isolation Voltage (dB)	20
Maximum Insertion Loss (dB)	3.1
Typical Input 1dB Compressed Power (dBm)	26
Technology	GaAs MMIC
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
High Control Voltage (V)	2 to 5
Typical Supply Current (mA)	4
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	24
Original Package	LFCSP EP
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	24
