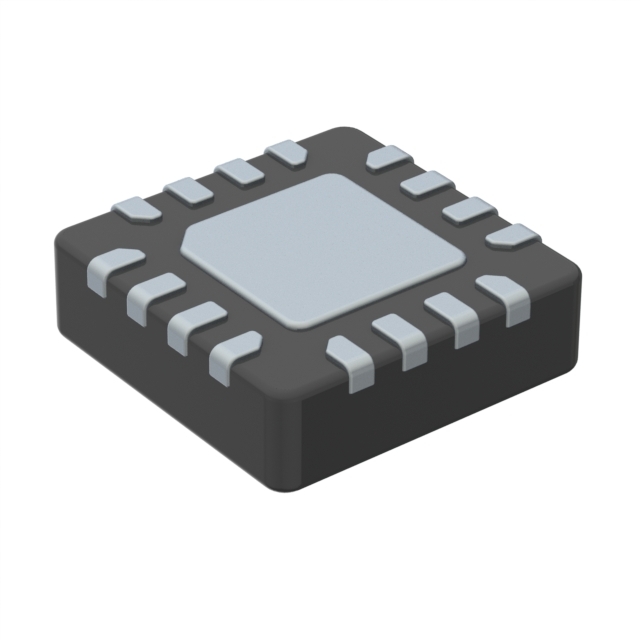

HMC241ALP3E

SKU: 16268

Manufacturer: Analog Devices

RF Switch SP4T 100MHz to 4GHz 25dB 16-Pin LFCSP EP Cut Tape

8470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SP4T
Switch Configuration	Single SP4T
Number of Switches	1
Switching Speed (ns)	30(Typ)
Frequency Band (MHz)	100 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	25
Maximum Insertion Loss (dB)	1.5
Typical Input 1dB Compressed Power (dBm)	29
Technology	GaAs MMIC
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5
High Control Voltage (V)	2 to 5
Typical Supply Current (mA)	2.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Original Package	LFCSP EP
Pin Count	16
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	3
Package Width	3
PCB changed	16
