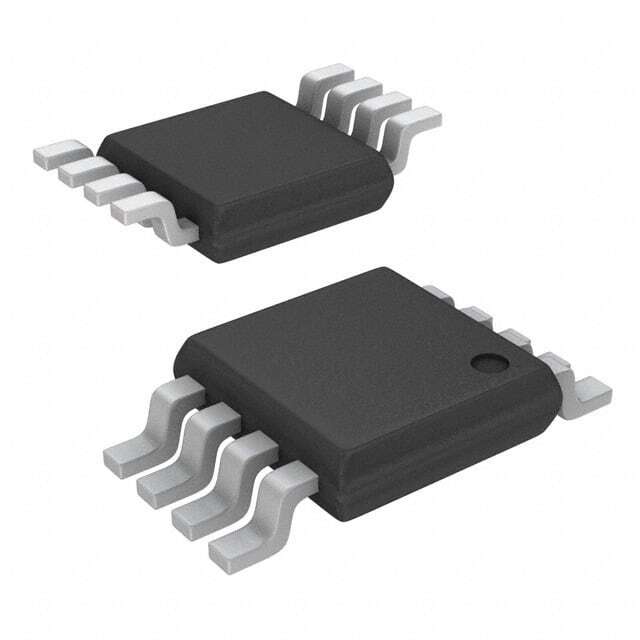

HMC199MS8ETR

SKU: 132222

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 2.5GHz 17dB 8-Pin MSOP T/R

51810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	20(Typ)
Frequency Band (MHz)	0 to 2500
Maximum Frequency (MHz)	2500
Minimum Isolation Voltage (dB)	17
Maximum Insertion Loss (dB)	1
Typical Input 1dB Compressed Power (dBm)	23
Technology	GaAs
High Control Voltage (V)	-0.5 to 7.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
