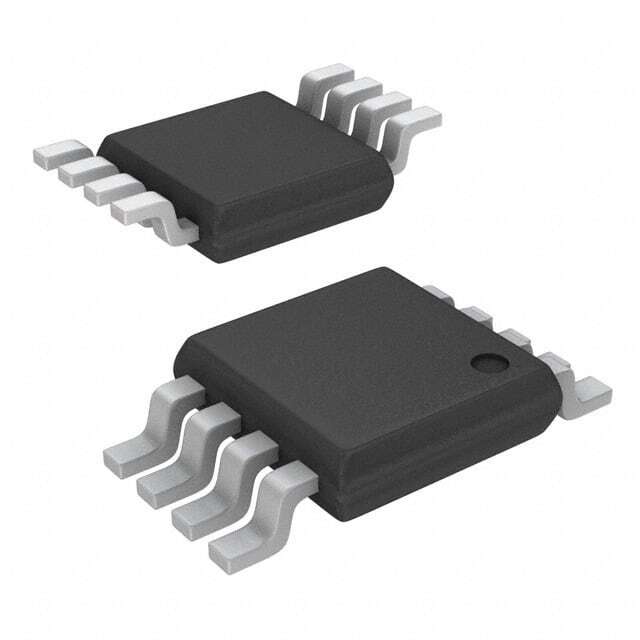

HMC194MS8ETR

SKU: 125080

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 3GHz 24dB 8-Pin MSOP T/R

9350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Frequency Band (MHz)	0 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	24
Maximum Insertion Loss (dB)	1.1
Typical Input 1dB Compressed Power (dBm)	28
Technology	CMOS/TTL
High Control Voltage (V)	3 to 7
Maximum Power Dissipation (mW)	360
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Original Package	MSOP
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
