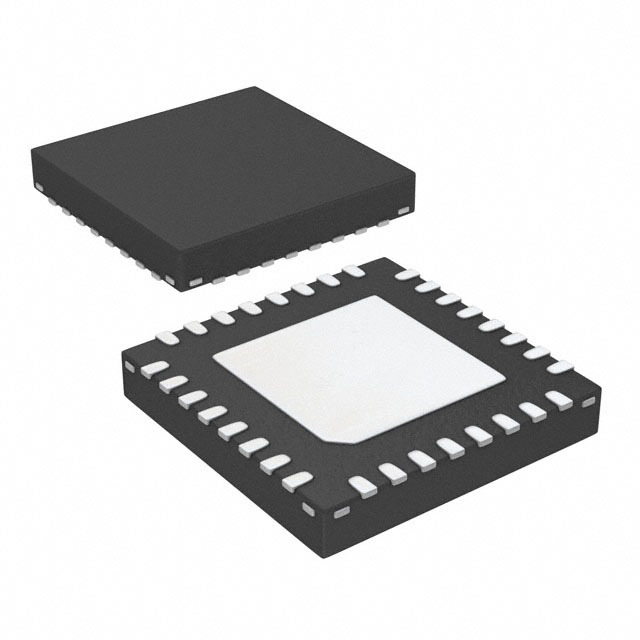

HMC1167LP5E

SKU: 68556

Manufacturer: Analog Devices

Oscillator VCO 6085MHz to 6665MHz/ 12170MHz to 13330MHz 5V 32-Pin LFCSP EP SMD T/R

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	12170
Upper Frequency (MHz)	13330
Output Frequency (MHz)	12170 to 13330
Frequency Range (MHz)	12170 to 13330
Typical Phase Noise (dBc/Hz)	-113@100KHz
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Tuning Voltage (V)	2 to 13
Maximum Supply Current (mA)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	32
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	32
