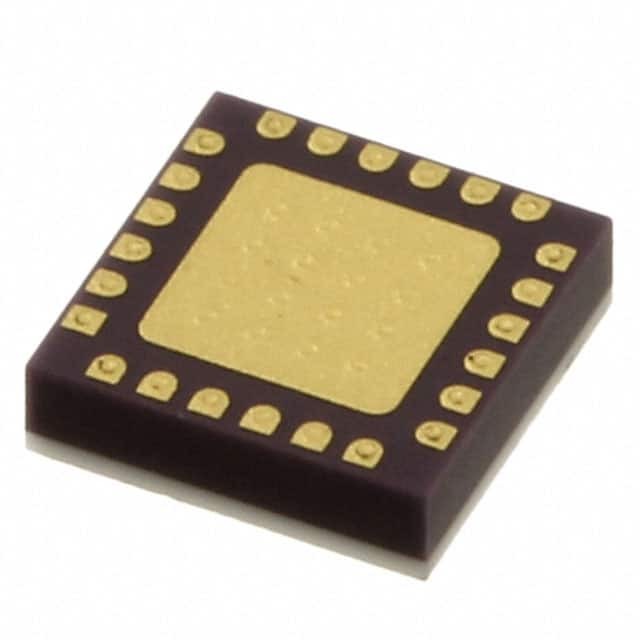

HMC1084LC4TR

SKU: 54532

Manufacturer: Analog Devices

RF Switch SP4T 23GHz to 30GHz 21dB 24-Pin CQFN EP T/R

170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Switch Type	SP4T
Switch Configuration	Single SP4T
Number of Switches	1
Switching Speed (ns)	15(Typ)
Frequency Band (MHz)	23000 to 30000
Maximum Frequency (MHz)	30000
Minimum Isolation Voltage (dB)	21
Maximum Insertion Loss (dB)	4.5
Technology	GaAs MMIC
High Control Voltage (V)	-2.75 to -5
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CQFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1.02(Max)
Package Length	4
Package Width	4
PCB changed	24
