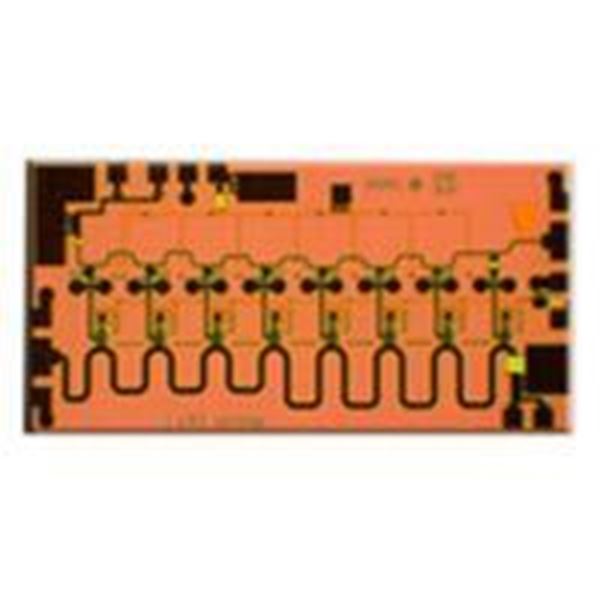

HMC1022

SKU: 33090

Manufacturer: Analog Devices

RF Amp Single Power Amp 48GHz 12V 8-Pin Chip Tray

19370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001b.2.d.
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	48000
Typical Gain Flatness (dB)	±1.1
Typical Power Gain (dB)	11.5@48000MHz
Typical Output Power (dBm)	19@48000MHz
Typical Output Intercept Point (dBm)	29@48000MHz
Maximum Input Return Loss (dB)	15(Typ)@48000MHz
Maximum Output Return Loss (dB)	18(Typ)@48000MHz
Typical Noise Figure (dB)	8@48000MHz
Operating Supply Voltage-Max (V)	12
Typical Single Supply Voltage (V)	10
Maximum Single Supply Voltage (V)	12
Maximum Supply Current (mA)	150(Typ)@10V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1760
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Chip
Pin Count	8
Standard Package Method	Die
Terminal Form	Surface Mount
Package Length	2.82
Package Width	1.5
