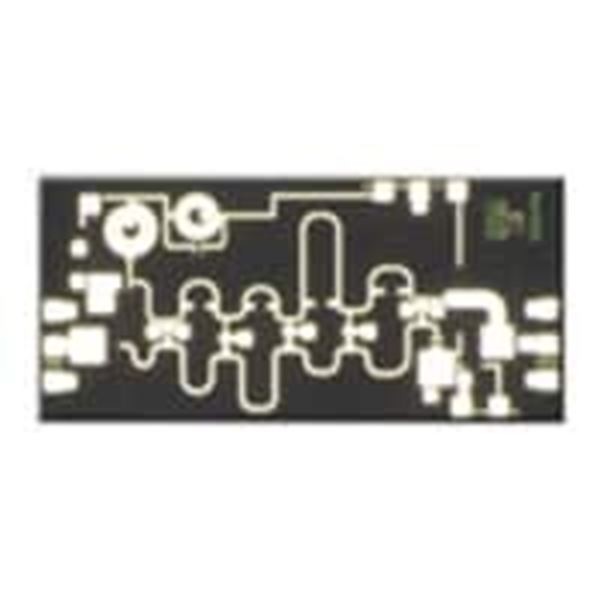

HMC-ALH102

SKU: 136576

Manufacturer: Analog Devices

RF Amp Single LNA 20GHz 3.7V 5-Pin Die Tray

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	20000
Typical Power Gain (dB)	10@20000MHz
Typical Output Power (dBm)	10@20000MHz
Maximum Input Return Loss (dB)	15(Typ)@20000MHz
Maximum Output Return Loss (dB)	12(Typ)@20000MHz
Typical Noise Figure (dB)	2.5@20000MHz
Operating Supply Voltage-Max (V)	3.7
Maximum Single Supply Voltage (V)	3.7
Maximum Supply Current (mA)	55(Typ)@2V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	5
Standard Package Method	Die
Package Height	0.1
Package Length	3
Package Width	1.44
