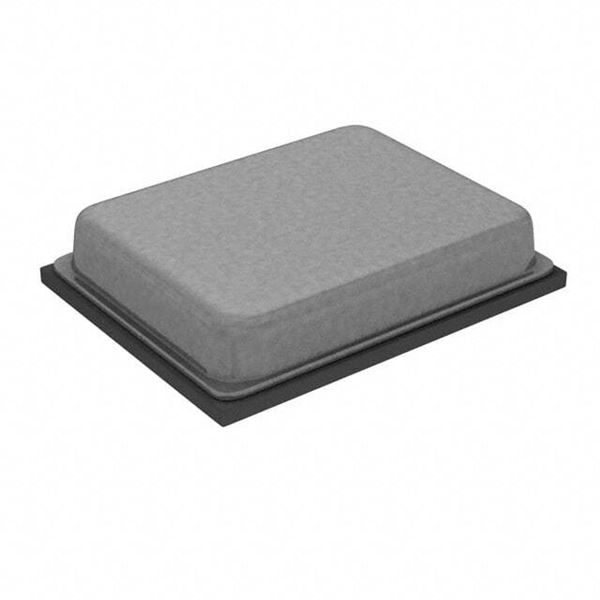

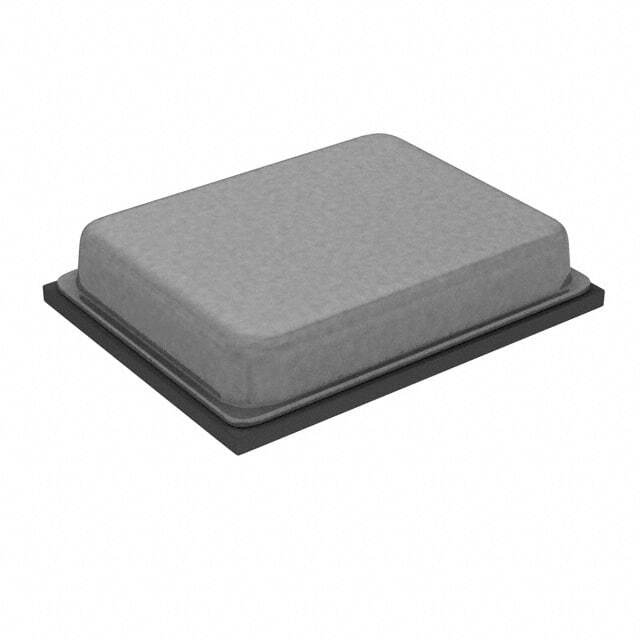

ADXRS290BCEZ-RL7

SKU: 157493

Manufacturer: Analog Devices

MEMS Dual Axis 18-Pin LGA T/R

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	7A994
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Axis Type	Dual
Typical Sensitivity (mV/°/s)	5
Typical Angular Rate Noise Density (°/s/rtHz)	0.004
Technology	MEMS
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5
Maximum Operating Supply Current (mA)	7.8(Typ)
Operating Temperature-Min	-25
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Linearity	No
Linearity Error (%)	±2
Packing Method	Tape and Reel
Original Package	LGA
Pin Count	18
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	1.2
Package Length	5.8
Package Width	4.5
PCB changed	18
