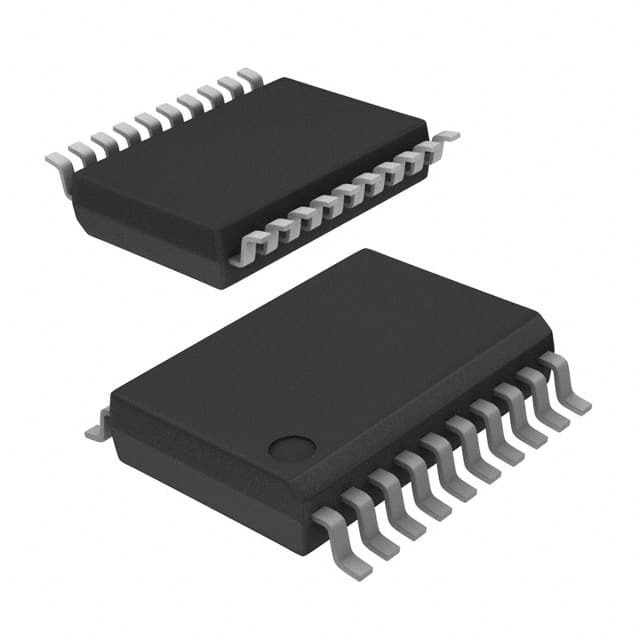

ADUM5010ARSZ Analog Devices

ADUM5010ARSZ

SKU: 67284

Manufacturer: Analog Devices

Module DC-DC 1-OUT 3.3V to 5V 0.15W 20-Pin SSOP Tube

Download sample

Request Free Samples

800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Up
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	3.3
Maximum Input Voltage (V)	5.5
Output Voltage (V)	3.3 to 5
Output Power (W)	0.15
Minimum Isolation Voltage	2500Vrms
Input/Output Type	DC/DC
Switching Frequency (kHz)	125000(Typ)
Switching Regulator	Yes
Load Regulation	3%
Line Regulation	20mV/V(Typ)
Efficiency (%)	29(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Output Type	Fixed
Pin Count	20
Original Package	SSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.75
Package Length	7.2
Package Width	5.3
PCB changed	20
