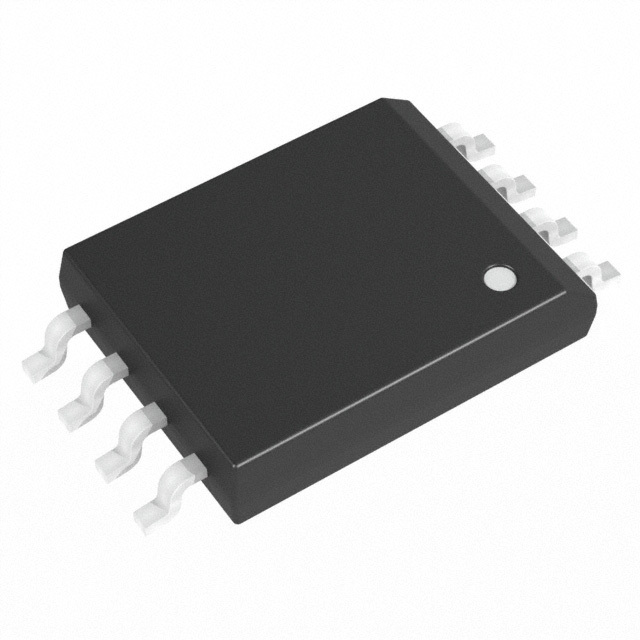

ADUM4121-1ARIZ

SKU: 37151

Manufacturer: Analog Devices

Driver 2A 1-OUT High Side/Isolated Gate Driver Half Brdg Inv/Non-Inv 8-Pin SOIC W Tube

2340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	18(Typ)
Maximum Fall Time (ns)	18(Typ)
Maximum Propagation Delay Time (ns)	38(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	2.5
Operating Supply Voltage-Max (V)	6.5
Maximum Supply Current (mA)	3.6(Typ)
Typical Input Low Threshold Voltage (V)	1.5(Max)
Typical Input High Threshold Voltage (V)	3.5(Min)
Peak Output Current (A)	2
Maximum Power Dissipation (mW)	1200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tube
Original Package	SOIC W
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35
Package Length	5.85
Package Width	7.5
PCB changed	8
