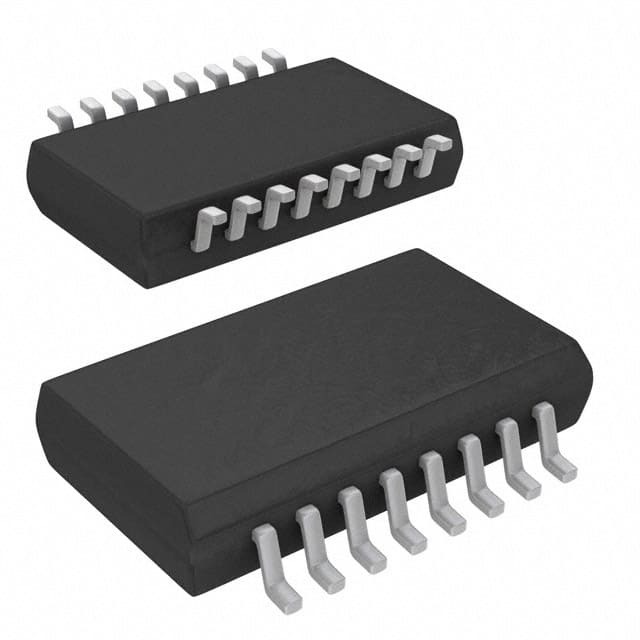

ADUM3223ARZ-RL7

SKU: 38972

Manufacturer: Analog Devices

Driver 4A 2-OUT High and Low Side/Isolated Gate Driver Half Brdg Automotive 16-Pin SOIC N T/R

170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	12(Typ)
Maximum Fall Time (ns)	12(Typ)
Maximum Operating Frequency (kHz)	1000(Min)
Maximum Propagation Delay Time (ns)	47(Typ)
Input Logic Compatibility	3.3V
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	5.6(Typ)
Typical Input Low Threshold Voltage (V)	1.65(Max)
Typical Input High Threshold Voltage (V)	2.1(Min)
Peak Output Current (A)	4
Output Resistance (Ohm)	1.1
Maximum Power Dissipation (mW)	2770
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10(Max)
Package Width	4(Max)
