ADUM1301CRWZ-RL

SKU: 72458

Manufacturer: Analog Devices

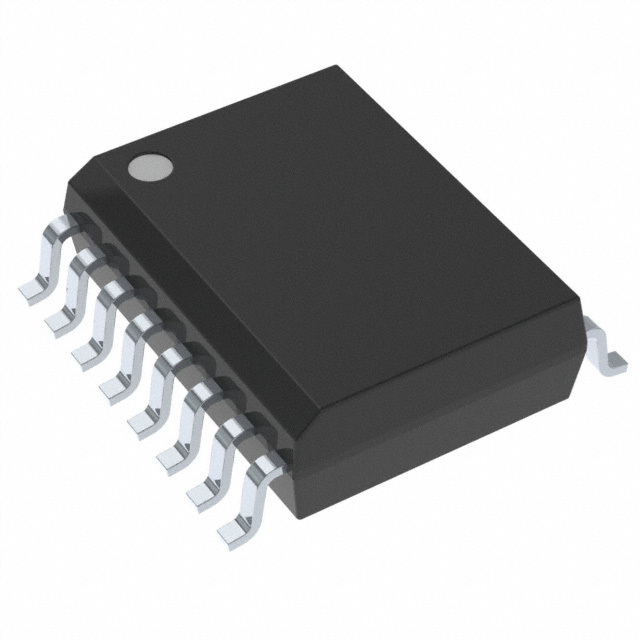

Digital Isolator CMOS 3-CH 90Mbps Automotive 16-Pin SOIC W T/R

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	3
Maximum Data Rate	90Mbps
Maximum Rise Time (ns)	2.5(Typ)
Maximum Fall Time (ns)	2.5(Typ)
Minimum Pulse Width (ns)	11.1(Max)
Maximum Pulse Width Distortion (ns)	2
Maximum Propagation Delay Skew (ns)	10
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	4.5
Maximum Propagation Delay Time (tPHL) (ns)	32
Minimum Isolation Voltage (Vrms)	2500
Maximum Propagation Delay Time (tPLH) (ns)	32
Maximum Working Insulation Voltage	560Vp
Maximum Quiescent Supply Current (mA)	57/37
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Typical Operating Supply Voltage (V)	5
Forward/Reverse Channels	2/1
Minimum Common Mode Rejection (kV/us)	25
Coupling Type	Magnetic Coupling
Standard Package Method	SOP
Original Package	SOIC W
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	10.5(Max)
Package Width	7.6(Max)
PCB changed	16
