ADUM1240ARZ

SKU: 130949

Manufacturer: Analog Devices

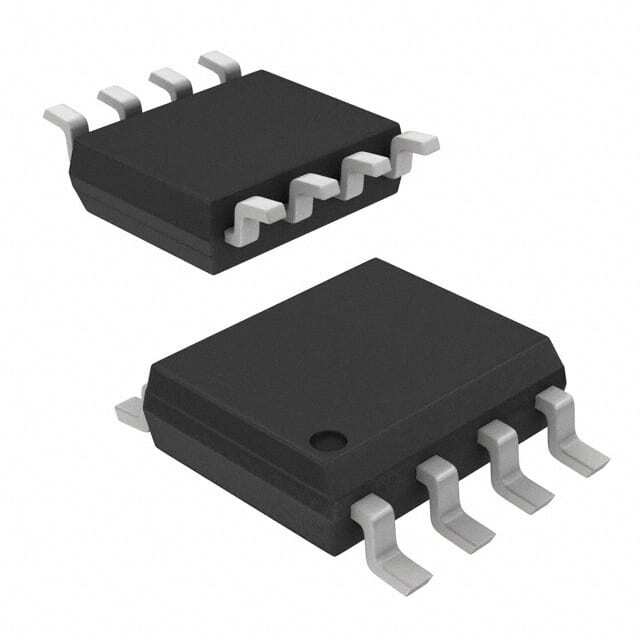

Digital Isolator CMOS 2-CH 2Mbps 8-Pin SOIC N Tube

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	2
Maximum Data Rate	2Mbps
Maximum Rise Time (ns)	2(Typ)
Maximum Fall Time (ns)	2(Typ)
Minimum Pulse Width (ns)	500
Maximum Pulse Width Distortion (ns)	12
Maximum Propagation Delay Skew (ns)	10
Output Type	CMOS
Operating Supply Voltage-Max (V)	3.6
Operating Supply Voltage-Min (V)	2.25
Maximum Propagation Delay Time (tPHL) (ns)	180
Minimum Isolation Voltage (Vrms)	3000
Maximum Propagation Delay Time (tPLH) (ns)	180
Maximum Working Insulation Voltage	560Vp
Maximum Quiescent Supply Current (mA)	0.01/0.006
Maximum Power Dissipation (mW)	1640
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Forward/Reverse Channels	2/0
Minimum Common Mode Rejection (kV/us)	25
Coupling Type	Magnetic Coupling
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
