ADUM1100ARZ-RL7

SKU: 67270

Manufacturer: Analog Devices

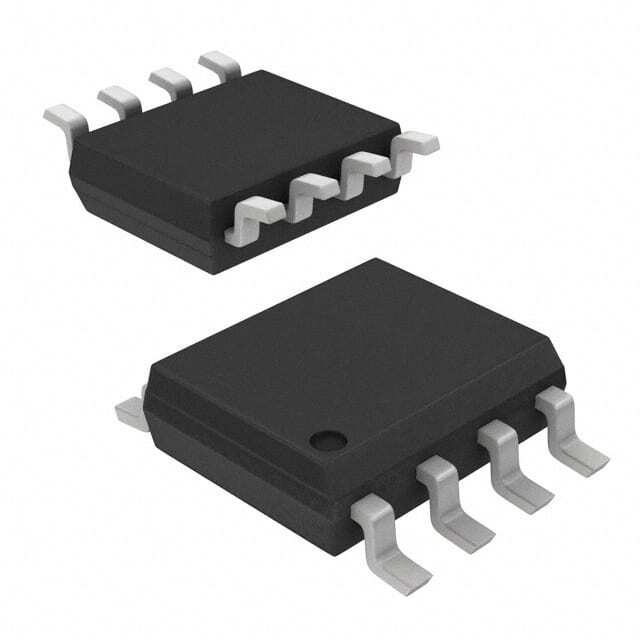

Digital Isolator CMOS 1-CH 25Mbps 8-Pin SOIC N T/R

80940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	1
Maximum Data Rate	25Mbps
Maximum Rise Time (ns)	3(Typ)
Maximum Fall Time (ns)	3(Typ)
Minimum Pulse Width (ns)	40(Max)
Maximum Pulse Width Distortion (ns)	2
Maximum Propagation Delay Skew (ns)	8
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	3
Maximum Propagation Delay Time (tPHL) (ns)	18
Minimum Isolation Voltage (Vrms)	2500
Maximum Propagation Delay Time (tPLH) (ns)	18
Maximum Working Insulation Voltage	560Vp
Maximum Quiescent Supply Current (mA)	0.8/0.06
Maximum Power Dissipation (mW)	240
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Typical Operating Supply Voltage (V)	3.3
Forward/Reverse Channels	1/0
Minimum Common Mode Rejection (kV/us)	25
Coupling Type	Magnetic Coupling
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
