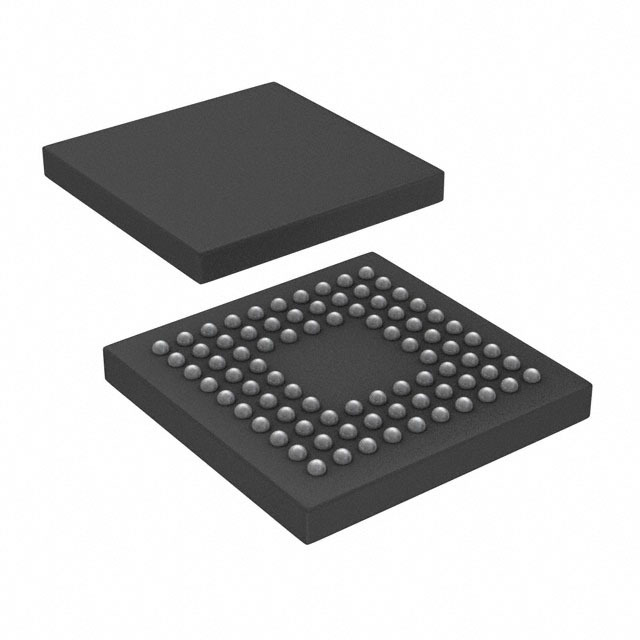

ADUCM322BBCZ-RL

SKU: 88344

Manufacturer: Analog Devices

MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V 96-Pin CSP-BGA T/R

950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	32KB
Programmability	Yes
Interface Type	I2C/SPI/UART
No. of Timers	3
PWM	1
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	8
DAC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.9
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	CSP-BGA
Pin Count	96
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.86
Package Length	6
Package Width	6
PCB changed	96
