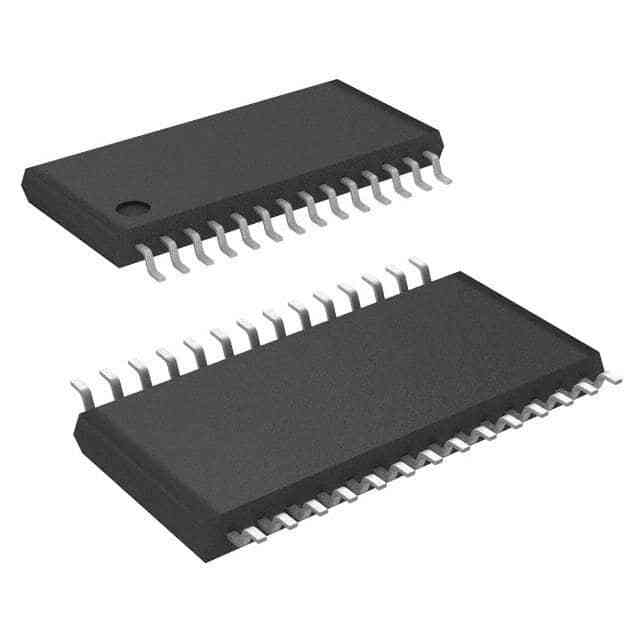

ADUC814ARUZ-REEL7

SKU: 116688

Manufacturer: Analog Devices

MCU 8-bit 8052 CISC 8KB Flash 3V/5V 28-Pin TSSOP T/R

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ADuC8xx
Instruction Set Architecture	CISC
Device Core	8052
Core Architecture	8051
Maximum CPU Frequency (MHz)	16.78
Maximum Clock Rate (MHz)	16.78
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	256B
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	11
No. of Timers	3
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.3
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.7
Package Width	4.4
PCB changed	28
