ADT7320UCPZ-R2

SKU: 123810

Manufacturer: Analog Devices

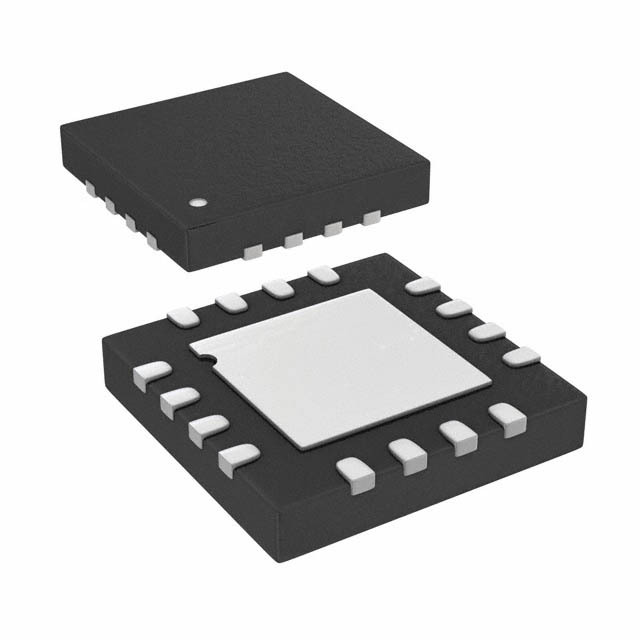

Temp Sensor Digital Serial (4-Wire, SPI) 16-Pin LFCSP EP T/R

4300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Module/IC Classification	IC
Resolution (bit)	16
Accuracy	±0.66°C(Max)
Interface Type	Serial (4-Wire, SPI)
Output Type	Digital
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	300
Maximum Power Dissipation (mW)	0.7(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	16
