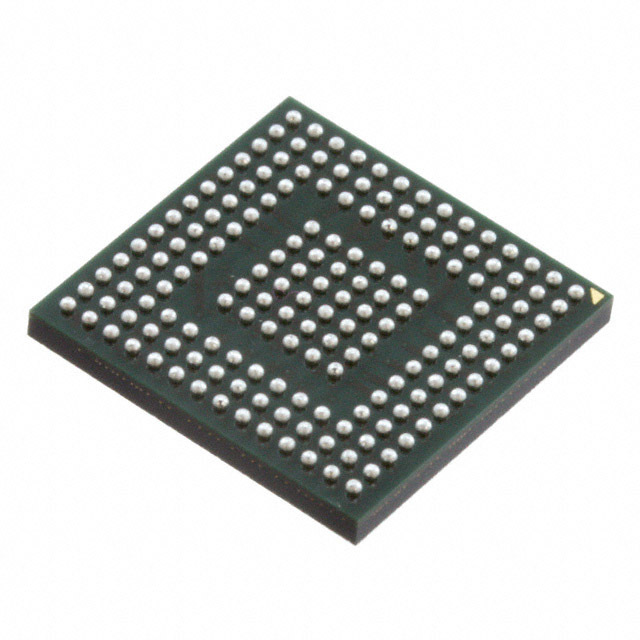

ADSP-BF514KBCZ-4

SKU: 152195

Manufacturer: Analog Devices

DSP Fixed-Point 16bit/32bit 400MHz 168-Pin CSP-BGA Tray

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992a.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ADSP-BF51x
Instruction Set Architecture	Modified Harvard
Numeric and Arithmetic Format	Fixed-Point
Data Bus Width (bit)	16
Program Memory Type	ROMless
Program Memory Size	32KB
RAM Size	116KB
Programmability	No
Interface Type	I2C/SPI/UART
Number of I/Os	40
Device Input Clock Speed (MHz)	400
USART	0
UART	2
USB	0
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	2.25
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Original Package	CSP-BGA
Pin Count	168
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.26
Package Length	12
Package Width	12
PCB changed	168
