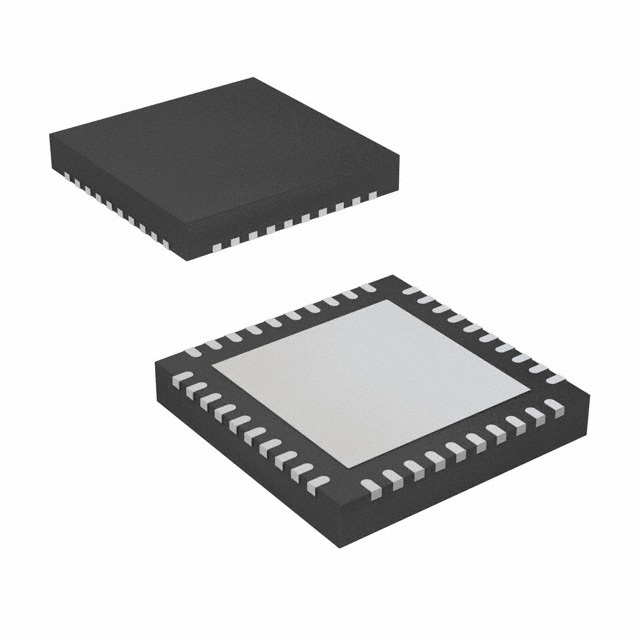

ADRF6701ACPZ-R7

SKU: 152168

Manufacturer: Analog Devices

Quadrature Mod 40-Pin LFCSP EP T/R

3160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Device Type	Modulator
Modulation Type	Quadrature
Programmability	Yes
Typical Output Power (dBm)	4.4
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (A)	0.29(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	40
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	6
Package Width	6
PCB changed	40
