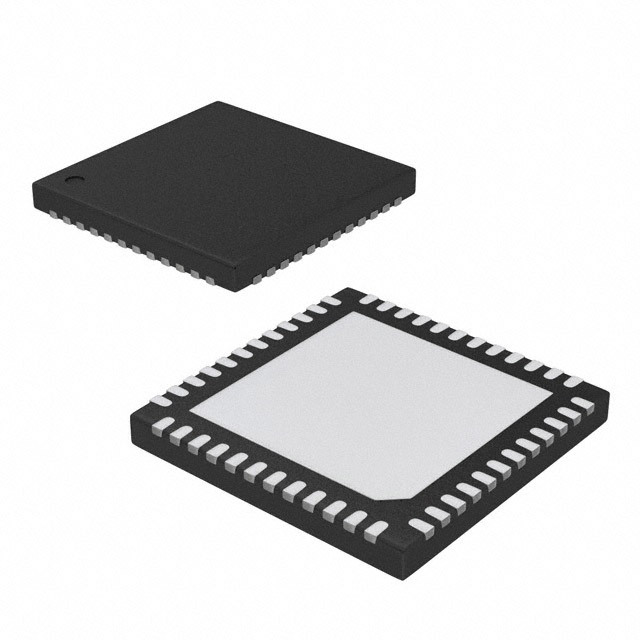

ADRF6658BCPZ

SKU: 143259

Manufacturer: Analog Devices

Up/Down Conv Mixer 3.3V 690MHz 48-Pin LFCSP EP Tray

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.g
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	3800
Maximum Input Frequency (MHz)	690
Maximum Conversion Gain (dB)	26.5(Typ)
Typical LO/RF Isolation (dB)	52
Typical Third Order Input Intercept Point (dBm)	29
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.45
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Standard Package Method	CSP
Pin Count	48
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	7
Package Width	7
PCB changed	48
