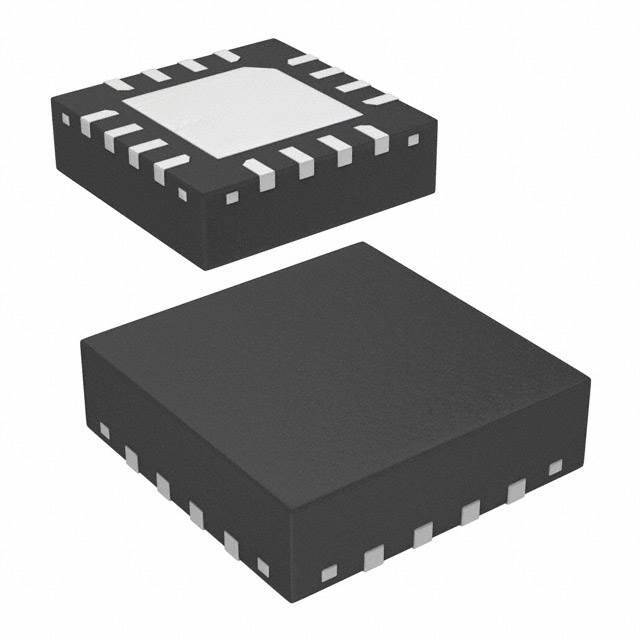

ADRF5132BCPZN

SKU: 72442

Manufacturer: Analog Devices

RF Switch SPDT 700MHz to 5GHz 50dB 16-Pin LFCSP EP T/R

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	140(Typ)
Frequency Band (MHz)	700 to 5000
Maximum Frequency (MHz)	5000
Minimum Isolation Voltage (dB)	50(Typ)
Maximum Insertion Loss (dB)	0.9(Typ)
Technology	CMOS/TTL
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
High Control Voltage (V)	1.3 to 5
Typical Supply Current (mA)	1.1
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	16
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	16
