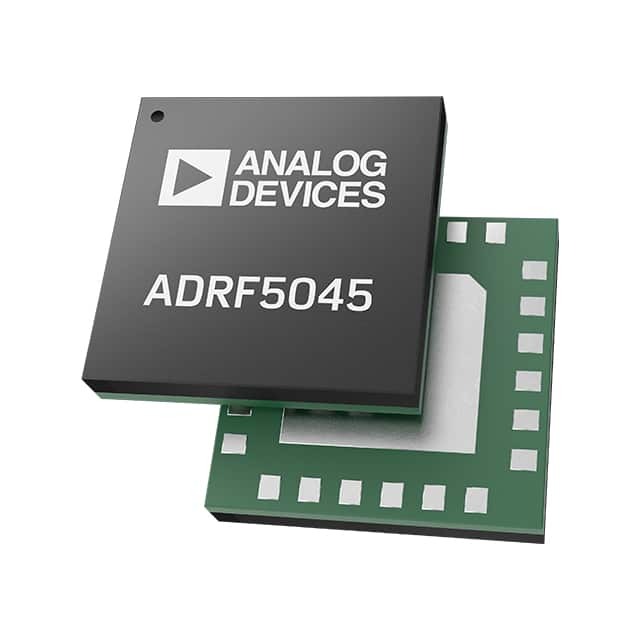

ADRF5045BCCZN

SKU: 22923

Manufacturer: Analog Devices

RF Switch SP4T 0.009MHz to 30GHz 45dB 24-Pin LGA EP Cut Tape

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SP4T
Switch Configuration	Single SP4T
Number of Switches	1
Switching Speed (ns)	2000(Typ)
Frequency Band (MHz)	0.009 to 30000
Maximum Frequency (MHz)	30000
Minimum Isolation Voltage (dB)	45(Typ)
Maximum Insertion Loss (dB)	2.4(Typ)
Typical Input 1dB Compressed Power (dBm)	28
Technology	Silicon
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.45
Typical Supply Current (mA)	0.003
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Original Package	LGA EP
Pin Count	24
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	0.96(Max)
Package Length	4
Package Width	4
PCB changed	24
