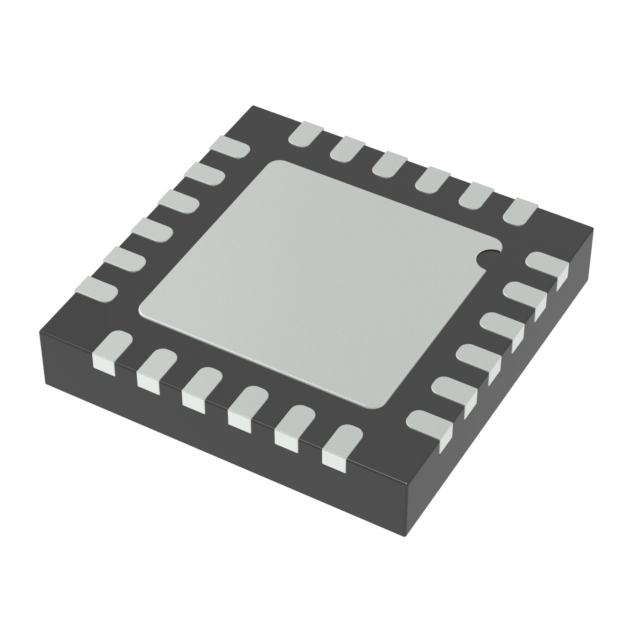

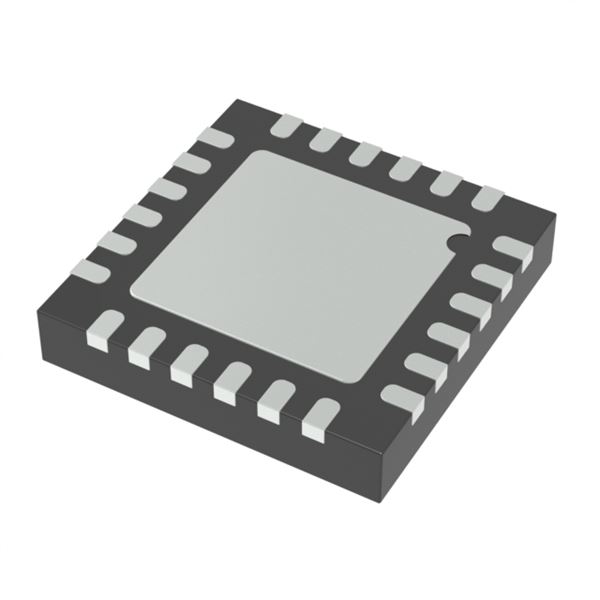

    ADP5135ACPZ-R7

    SKU: 121979
    Manufacturer: Analog Devices
    Conv DC-DC 3V to 5.5V Synchronous Step Down Single-Out 0.8V to 3.8V 1.8A Medical 24-Pin LFCSP EP T/R
    Download sample
    Request Free Samples
    1740 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type Synchronous Step Down
    Output Type Adjustable
    Switching Frequency (kHz) 2500 to 3500
    Switching Regulator Yes
    Number of Outputs 1
    Output Voltage (V) 0.8 to 3.8
    Maximum Output Current (A) 1.8
    Minimum Input Voltage (V) 3
    Maximum Input Voltage (V) 5.5
    Operating Supply Voltage (V) 3 to 5.5
    Typical Switch Current (A) 2.6
    Line Regulation -0.05%/V
    Load Regulation -0.1%/A
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Supplier Temperature Grade Industrial
    Packing Method Tape and Reel
    Original Package LFCSP EP
    Pin Count 24
    Standard Package Method CSP
    Terminal Form Surface Mount
    Package Height 0.73
    Package Length 4
    Package Width 4
    PCB changed 24
