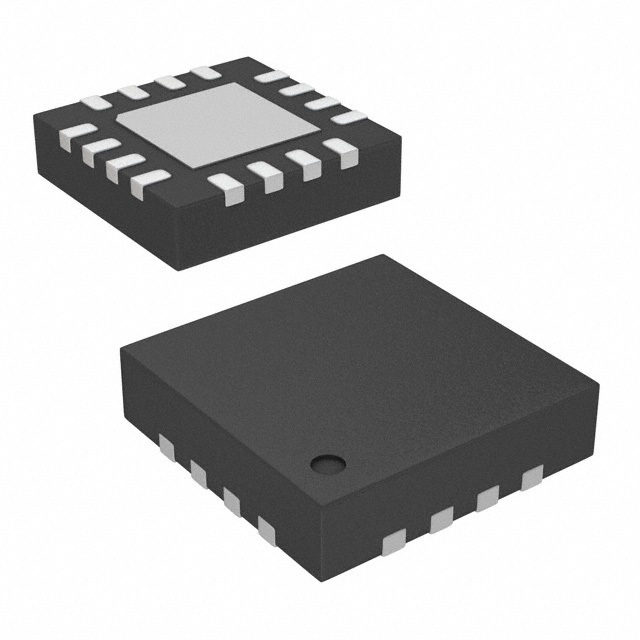

ADP5074ACPZ-R7

SKU: 109520

Manufacturer: Analog Devices

Conv DC-DC 2.85V to 15V Synchronous Inverting Single-Out -0.5V to -36.15V 16-Pin LFCSP EP T/R

2350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Inverting
Output Type	Adjustable
Switching Frequency (kHz)	2400(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	-0.5 to -36.15
Minimum Input Voltage (V)	2.85
Maximum Input Voltage (V)	15
Operating Supply Voltage (V)	2.85 to 15
Typical Switch Current (A)	2.75
Typical Quiescent Current (uA)	1800
Line Regulation	0.02%/V(Typ)
Load Regulation	0.0006%/A(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	16
